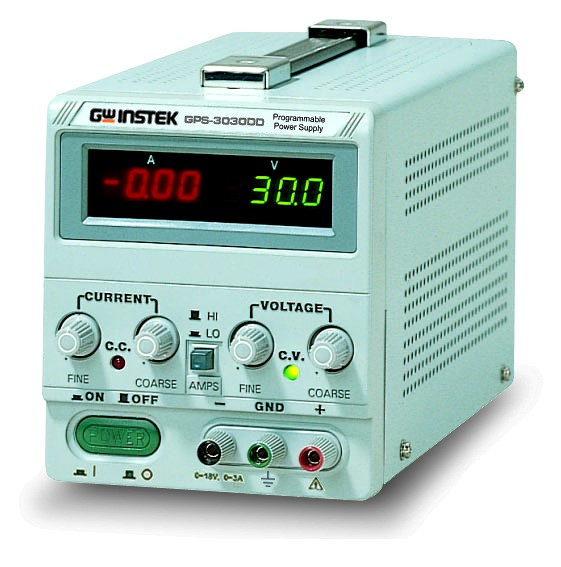

GW-Instek GPS_3030D
Technical Specification:
Regulation:
Line regulation≦0.01% + 3mV
Load regulation≦0.01% + 3mV (rating current≦3A)
Load regulation≦0.01% + 5mV (rating current > 3A)
Ripple & Noise:
≤0.5mVrms 5Hz~1MHz (rating current≦3A)
≤1mVrms 5Hz ~ 1MHz (rating current > 3A) Recovery Time
Recovery Time: ≤100μS ( 50% load change, minimum load 0.5A ) Temp. Coefficient
Temp. Coefficient: ≤300ppm/°C
Output range: 0 to rating voltage continuously adjustable
CONSTANT CURRENT OPERATION :
Regulation:
Line regulation ≤0.2% + 3mA
Load regulation ≤0.2% + 3mA
